Product Detail

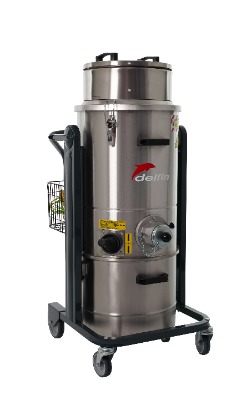

Flame Proof Vacuum Cleaner – 452 AIREX 14V 12D-22G

Categorie

Special Features
Compact and mobile
High filtration efficiency
Low noise level
High efficiency filtration
Sturdy vacuum cleaner for intensive use
Powerful suction thanks to a multi-nozzle venturi unit
ATEX Certified Z20 internal and Z21 external, suitable for gas suction in Zone 1 and 2
Stainless steel AISI304 collection tank

SUCTION UNIT
The suction is provided by a venturi compressed-air-driven suction unit, protected inside a strong steel chassis, which contains also sound absorbing material to minimize noise during service. The suction is developed by a venturi-type vented suction unit, protected inside a solid steel head, containing sound absorbing material that minimizes noise during service.

FILTER UNIT
It is possible to clean the filter using an integrated mechanical system: an external lever shakes the filter vertically and enables to clean the filter thoroughly and safely, maintaining constant suction performance and preventing any dispersion of dust in the environment.
A HEPA filter is included as standard (99,995% on 0,18 micron, class H) which holds the finest dusts and guarantees the cleanliness of the leaving air.
The large surface star filter, located inside the filter stainsteel chamber, is made of polyester and provides high resistance against clogging and passage of fine dust.

COLLECTION UNIT
The vacuumed material is placed inside an AISI304 stainless steel drop-down bin mounted on wheels, which makes it possible to dispose easily and safely of the vacuumed material, if need be collecting it directly into a paper bag.

Description

SUCTION UNIT
Atex zones – CE EX 1/2D
Marking – II 1/2D Ex h IIIC T85° Da/Db – II 2/2G Ex Air supply pressure bar 6
Ø Air supply hose – 12mm
Max water lift – 3700 mmH₂O
Max air flow – 300 m³/h
Suction inlet – 80 mm
Noise level (EN ISO 3744) – 68 dB(A)
Air supply – 1458 nlt / min
FILTER UNIT
Filter Type – Star
Surface Diameter – 20.000 – 420 cm²-mm
Material Efficiency – IEC 60335-2-69 Polyester – ANT M
Cleaning system – Manual
COLLECTION UNIT
Capacity – 45 Ltrs
Dimensions(LxWxH) – 70x55x127 cm
Weight – 50 kg
