Product Detail

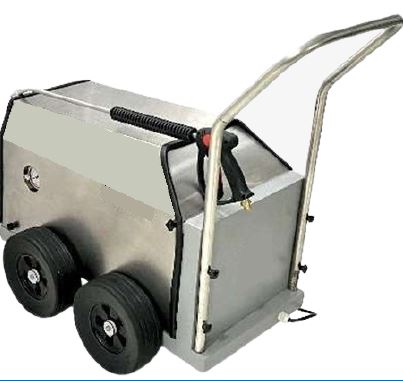

Hi Pressure Jet Washer – HPJC- 9/25 (3Ph 250 Bar)

  • Brass Pump Head.
  • Ceramic Pistons.
  • Stainless Steel Valves.
  • Crank & Connecting Rod Mechanism.
  • Heavy Duty Motor, TEFC, Class ‘F’ insulation, 1450 rpm.
  • DOL Starter with overload relay for motors above 5 HP.
  • Water inlet coupling with strainer.
  • Unloader valve suitable for trigger on/off operation thereby by-passing the water back to the inlet, it also act as a safety valve.
  • Glycerin filled pressure gauge indicates the operating pressure of the equipment.
  • Preheated water upto 60°C can be fed to the equipment.
  • The Trolley Base Frame is in powder coated Mild Steel and cover in Stainless Steel for long lasting.
  • Rubber/PU wheels provided absorbs vibration if any in the equipment.
    Continuous Duty Machine.

Description

Max Pressure (bar) 250
Max Pressure (psi) 3626
Max flow (lph) 900
Maximum Inlet Temperature °C 60
Power (Kw) 7.5 (10HP)
RPM 1450
Power (Hz) 50
Power (V) 415
Unit size (mm) l x w x h 749 x 588 x 595
Net weight (Kg) 80

Standard Accessories supplied with the equipment

  • Water inlet hose 5 mtrs. long.
  • High pressure hose 10 mtrs. long.
  • Spray gun assembly
  • High pressure lance with Vjet.
  • Electric Cable 5 mtrs. long.

Optional Accessories

  • Tornado Nozzle
  • Flex Tube Cleaner & Nozzle
